|Updated Conservation Advice was produced for the Offshore Overfalls MCZ in October 2017, and is available in the Conservation Advice section below.|
Status: Marine Conservation Zone (MCZ)
Offshore Overfalls MCZ is a joint site with Natural England, located in the eastern English Channel, approximately 18 km south-east of the Isle of Wight. The seabed is predominantly coarse sediment with areas of sand, mixed sediments and exposed bedrock.
Located in the eastern English Channel, approximately 18 km south-east of the Isle of Wight, Offshore Overfalls MCZ is a joint site with Natural England. The seabed is predominantly coarse sediment with areas of sand, mixed sediments and exposed bedrock.
The site protects 593 km2 of seabed, including the English Channel outburst flood geomorphological features that are Quaternary fluvio-glacial erosion features. The variety of habitats found support a diverse range of species, including sponges, hydroids, bryozoans on the cobbles and boulders and crabs, sea stars and sea urchins. Burrowing worms live within the sediment alongside burrowing anemones and bivalves such as scallops.
More detailed site information can be found in the Summary section below.
Map displaying the Offshore Overfalls MPA boundary and associated protected feature data. Visit JNCC's MPA Mapper to further view and explore data for this MPA.
Legislation behind the designation: Marine and Coastal Access Act (2009)
EUNIS Code: Protected Feature
General Management Approach
A5.1: Subtidal coarse sediments
Recover to favourable condition
A5.4: Subtidal mixed sediments
Recover to favourable condition
A5.2: Subtidal sand
Recover to favourable condition
English Channel outburst flood features
Maintain in favourable condition
Specific information on the conservation objectives relating to this site is provided in the Conservation Advice section.
The acquisition of new data may result in updates to our knowledge on feature presence and extent within this site. The most up to date information is reflected on the map on this page and in JNCC’s MPA mapper and the evidence underpinning this can be viewed in the Evidence section.
The diagram below is a summary of the key milestones involved in the selection and designation of Offshore Overfalls MCZ. More detail can be found in the Relevant Documentation section.
The documents referred to below and any other historical documents relating to Offshore Overfalls MCZ were produced during the selection and designation process and therefore may be out of date. This Site Information Centre is the most up-to-date source of information for this MPA, and will reflect any additional information gathered since these documents were produced. Further information about the Marine Conservation Zone site selection process and historic MCZ advice is available on JNCC's MCZ webpages.
- Offshore Overfalls MCZ Designation Order – the official description of the site designation under the Marine and Coastal Access Act 2009. The Designation Order includes boundary co-ordinates, conservation objectives and a list of the designated features. More information on the designation, including a designation map and factsheet, is available on Defra's website.
- JNCC's pre- and post-consultation scientific advice for features proposed for designation in 2016.
Last updated: October 2018
Information for this site summary was adapted from JNCC’s scientific advice to Defra on the designation of Offshore Overfalls MCZ and incorporates any further information gathered since this document was produced. Please refer to this document in the Relevant Documentation section for further details and information sources.
The Offshore Overfalls MCZ is located in the Eastern English Channel approximately 18 km south-east of the Isle of Wight and just north of the Offshore Brighton MCZ. It includes a mixture of sediment types which create a dynamic seabed environment and host a diverse ecosystem. The site depth ranges from 20 m to 70 m, the deeper areas coinciding with a valley system running through the site from the south to the north-east. This valley is part of the English Channel Outburst Flood Features (Quaternary fluvio-glacial erosion features) which are protected within the site for their importance to the study of geomorphology.
The English Channel Outburst Flood Features were formed during the Pleistocene Epoch more than 200,000 years ago when sea levels were much lower than they are today and the English Channel was not yet covered by seawater. A large glacial meltwater (freshwater) lake, in part of the area now occupied by the southern North Sea, burst its retaining bank to the south. This created a vast discharge of sediment and water that carved out large-scale longitudinal valleys, the outburst flood features, which were later submerged by seawater in the English Channel when sea levels rose again after the Ice Age. These erosional features have scientific value as they help us to understand the Ice Age history of the area, including sea-level change, and how massive-scale flood features develop, which may provide important information about tsunami events. Within the Offshore Overfalls MCZ these erosional features are evident as deeper valleys within the site which run along the south east corner.
Offshore Overfalls MCZ was originally recommended by the Balanced Seas Regional MCZ Project in 2011. The site was prioritised for additional evidence collection in a verification survey undertaken by JNCC and Cefas in 2012 to improve confidence in the presence and extent of broad-scale habitats and habitat features of conservation importance (FOCI).

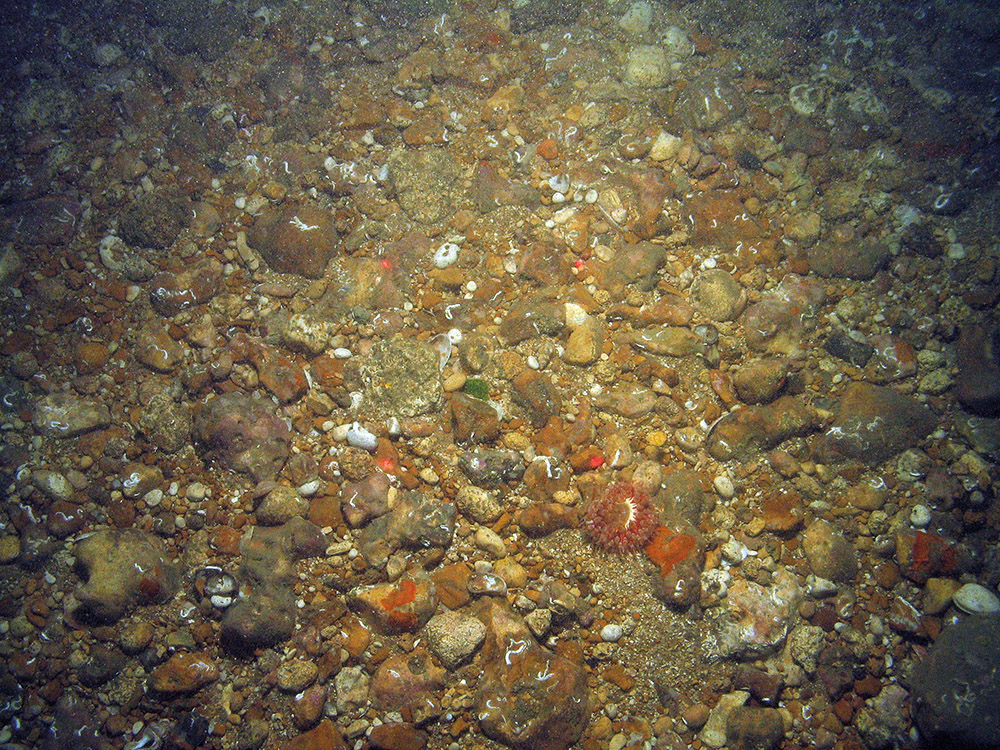

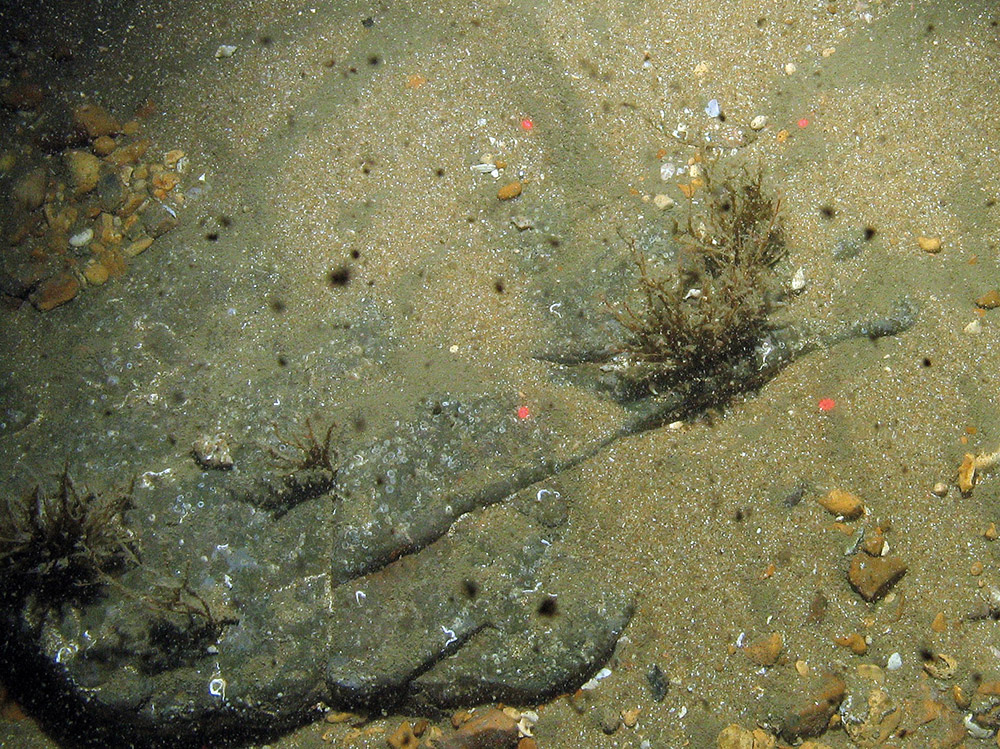

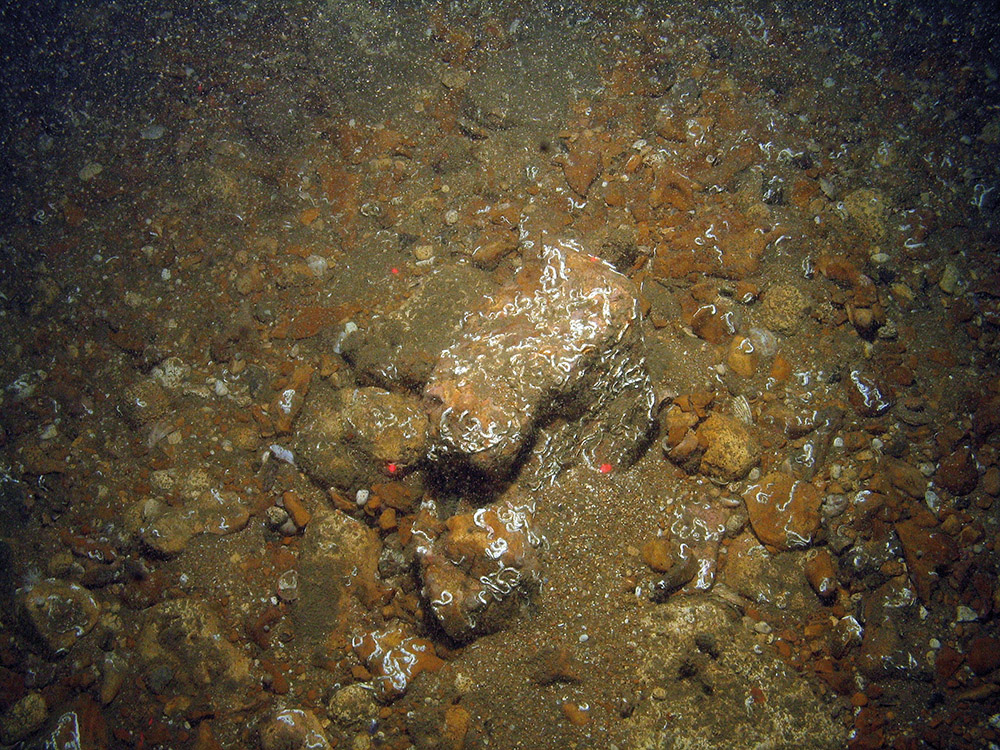

The 2012 survey confirmed the presence of the broad-scale habitats (BSH) designated within this MCZ (subtidal coarse sediment, subtidal mixed sediments and subtidal sand sediment), along with moderate energy circalittoral rock which was recorded sporadically across the MCZ.

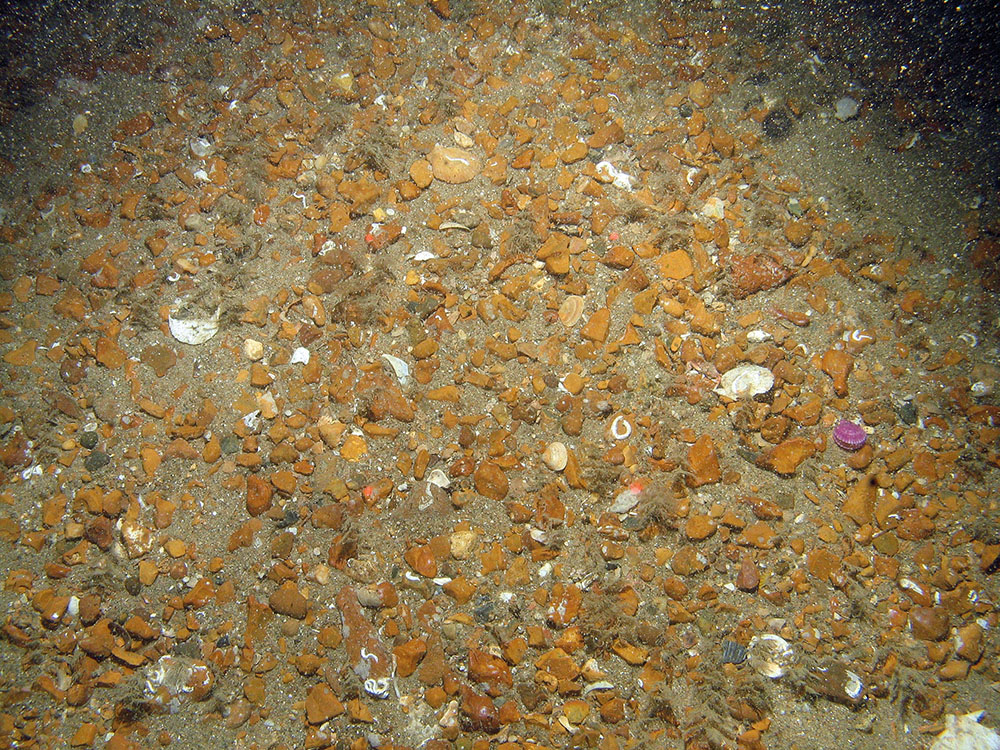

The BSH subtidal sand is located in two isolated patches that fringe the northern margin of the Northern Palaeovalley and associated with marine bedforms that form a collection of sediment ripples and waves. These marine bedforms are predominantly comprised of sandy sediment although some coarse or mixed sediments may be present in the troughs of the sediment waves. The BSH subtidal mixed sediments is confined to the northeast of the MCZ. Evidence from the 2012 survey shows bedrock structures visible at the seabed in this region, covered with a thin veneer of mixed sediments. Bedrock structures are sporadic along the south east of the site and in an area to the north-west known as the ‘Overfalls’ which is the namesake of Offshore Overfalls MCZ. Subtidal coarse sediment is predominant within the MCZ, covering almost three-quarters of the site. It is located on the flanks and terraces of the Northern Palaeovalley and within the valley floor.
Offshore Overfalls MCZ was included in the proposed network because of its contribution to ENG criteria to broad-scale habitats (BSH), and its added ecological importance. The area is incredibly diverse with 278 infauna species and 45 epifauna species identified from the 2012 survey. This data was reviewed by Envision Mapping Ltd for JNCC in 2016 and statistically analysed to reveal the potential biotopes present within the site. The majority of stations (52 out of 59) were assigned to the biotope SS.SCS.CCS.MedLumVen (Mediomastus fragilis, Lumbrineris spp. and venerid bivalves in circalittoral coarse sand or gravel) EUNIS code A5.142. This biotope fits with the broad scale habitats designated within the site and was characterised by comparatively high numbers of the bristle worm Notomastus latericeus, along with the pea urchin (Echinocyamus pusillus).The full report of this analysis can be found in the Evidence section.
The infauna biological communities appear to be dominated by a diverse range of burrowing worms (polychaetes). Bivalves such as the Queen scallop (Aequipecten opercularis) occur in smaller numbers along with the long-clawed porcelain crab (Pisidia longicornis) and the common brittlestar (Ophiothrix fragilis). The epifauna, living on top of the sediment, are dominated by hydroids and bryozonas and also include a range of sponges (Porifera), sea anemones (Actinaria) and sea stars such as the common starfish (Asterias rubens) and the common sun star (Crossaster papposus). Various species of fish are also present including thornback ray (Raja clavata), red gurnard (Chelidonichthys cuculus), small-spotted catshark (Scyliorhinus canicula), and bib (Trisopterus luscus). Further detail on the evidence for this MCZ can be found in the Evidence section.
Site location: Co-ordinates for this MCZ can be found in the Designation Order listed in the Relevant Documentation section.
Site area: 593 km2, which is similar to the size of the New Forest National Park (566 km2).
Site depth range: 20 m to 70 m. The seabed depth drops significantly in the middle of the site where it overlaps with the northern Paleovalley.
Charting Progress 2 biogeographic region: Eastern Channel.
Site boundary description: The north-west corner and limit of the northern boundary of the site are concurrent with the original boundaries proposed by the Balanced Seas Regional Group. The boundaries around the larger offshore part of the MCZ were set to include an area of higher biodiversity and are determined by geographical co-ordinates alone.
Last updated: January 2019
The full overview of the various data used to support site identification, along with information on confidence in feature presence and extent are available in the Scientific advice on possible offshore Marine Conservation Zones considered for consultation in 2015 and JNCC's post-consultation scientific advice for Tranche Two offshore Marine Conservation Zones proposed for designation in 2016. JNCC will be adding relevant survey data for this MCZ to its MPA mapper in due course.
Some of the data for this MCZ have been collected through JNCC-funded or collaborative surveys and some through other means. Data gathered provide direct evidence confirming the presence of the protected features within the site.
Survey and data gathering
- A new data gathering and monitoring survey took place in January 2019. The survey report will be published online when available. Meanwhile please visit the survey blog.
- Offshore Overfalls MCZ MB0120 Survey (2012) – JNCC collaborated with Cefas on an MCZ site verification survey to Offshore Overfalls MCZ, funded through the MB0120 Defra data collection. Video, images, acoustic data and grab samples were collected across the site
Data analysis reports
- Community analysis of Offshore Overfalls MCZ data (2016) – JNCC contracted Envision Mapping Limited to complete a community analysis of offshore MCZ grab and video data to establish biotopes present. The following European Nature Information System (EUNIS) biotopes were assigned after multivariate analysis of the 2012 survey data. The Marine Habitat Classification for Britain and Ireland (version 15.03, JNCC 2015) has been provided in brackets:
EUNIS Level 4 habitats: A5.14: Circalittoral coarse sediment (SS.SCS.CCS)
EUNIS Level 5 biotopes: A5.142: Mediomastus fragilis, Lumbrineries spp. and venerid bivalves in circalittoral coarse sand or gravel (SS.SCS.CCS.MedLumVen)
- EUSeaMap (2016) – Provides supporting information on the presence and extent of subtidal coarse sediment, subtidal sand and subtidal mixed sediments from a predictive seabed habitat map of European waters.
- Offshore Overfalls rMCZ Post-survey Site Report 2015 (Published in 2017) – Report detailing the findings of a dedicated seabed survey at Offshore Overfalls MCZ, providing evidence of the presence and extent of broad-scale habitats and habitat FOCI outlined in the original site assessment document. Reporting is underway and will be made available in due course.
- British Geological Survey Particle Size Analysis (PSA) Data Points – Particle Size Analysis of historical British Geological Survey data was collated and used to identify habitat type within the MCZ. PSA was used to provide habitat type in Modified Folk classification. This has been converted by JNCC to the EUNIS habitat using JNCC's 'Correlation Table showing Relationships between Marine Habitat Classifications (2004 and 2007 versions) and Habitats Listed for Protection'.
- MB0102 Task 2A Erosional Fluvio-glacial Features (2009) – Habitat map providing a shapefile of the English Channel Outburst Flood Feature (Quaternary fluvio-glacial flood features) taken from Gupta et al. 2007.
- Marine ALSF Regional Environmental Characterisation Surveys South Coast Synthesis (Surveys conducted 2007) – The South Coast Synthesis Study combines the Eastern English Channel REC habitat map with the South Coast REC habitat map and synthesises the gaps to create coverage across the English Channel. The study proposed some alternative habitat types that are not part of the EUNIS habitats classification system and JNCC translated these into the closest official EUNIS habitat types.
Additional relevant literature
References for further supporting scientific literature consulted during the identification of this site can be found in the annexes of our advice. Please be aware that although these sources contain information in relation to this MPA, they do not necessarily represent the views of JNCC.
- Gupta, S., Collier, J.S., Palmer-Felgate, A. and Potter, G. (2007) Catastrophic flooding origin of shelf valley systems in English Channel. Nature, 448, 342–345.
If you are aware of any additional information not referred in the Relevant Documentation section listed on the main page or the annexes of the MCZ advice documents, please contact us.
Last updated: October 2017
Conservation objectives set out the desired state for the protected feature(s) of an MPA. The conservation objectives for the protected features of an MPA are useful if you are:
- Planning measures to conserve the site and its protected features;
- Monitoring the condition of the protected features; and/or
- Developing, proposing or assessing an activity, plan or project that may affect the protected features of the site
The conservation objectives for the protected features of the MCZ are:
Subject to natural change, the broad-scale habitats Subtidal coarse sediment, Subtidal sand and Subtidal mixed sediments features are to remain in or be brought into favourable condition, such that its:
- Extent is stable or increasing; and
- Structures and functions, its quality, and the composition of its characteristic biological communities are such as to ensure that it is in a condition which is healthy and not deteriorating.
Subject to natural change, the English Channel Outburst Flood Features (Quaternary fluvio-glacial erosion features) geomorphological interest feature is to remain in or be brought into favourable condition, such that its:
- Extent, component elements and integrity are maintained;
- Structure and functioning are unimpaired; and
- Surface remains sufficiently unobscured for the purposes of determining whether the conditions in the points above are satisfied.
More information regarding the conservation objectives for the protected features of the Offshore Overfalls MCZ is available in the site Designation Order, In addition to the conservation objectives above, General Management Approaches (GMAs) have been set by JNCC for each feature, which provide a view as to whether a feature needs to be maintained in or be brought into favourable condition (i.e. recover), based on our knowledge about its condition. For more information on the General Management Approach for MCZs see Defra’s MCZ Designation Explanatory Note.
Advice on operations
Section 127 of the Marine & Coastal Access Act (2009) states that JNCC may provide advice and guidance regarding matters capable of damaging or otherwise affecting the protected features of an MCZ.
JNCC has published the following advice on activities which are capable of damaging or otherwise affecting protected features in MCZs:
- MCZ Fisheries Advice (joint advice with Natural England);
- MCZ Licensed activities Advice (joint advice with Natural England); &
- JNCC's pre-consultation and the post-consultation scientific advice for Tranche Two MCZs.
JNCC provides a list of activities occurring within the Offshore Overfalls MCZ and information on management within the Activities and Management section. JNCC has provided this to aid the cumulative assessment of impacts of human activities within the site. While every attempt has been made to ensure this information is accurate and kept up-to-date, the list is not to be considered exhaustive or definitive. The list does not, for example, include activities occurring off-site which may also be capable of affecting the protected features.
For the most up-to-date information about the biological communities present within the site and their spatial distribution, please see the Evidence section. Sensitivity information for the protected features within the site can be found in a Technical Report commissioned by Defra to support the MCZ designation process.
The information contained within the Evidence section, the Activities and Management section, the above Technical Report and the advice listed above on activities which are capable of damaging or otherwise affecting the protected features in MCZs are useful if you are:
- Carrying out any activity that may impact the protected features of the site and need to find out how to operate within the law;
- An authority providing advice on specific proposals; and/or
- An authority responsible for putting management measures in place.
Our scientific understanding of the ecology of the protected features of the site and how activities can affect them may change over time. Similarly the activities taking place within the site may also change over time. JNCC’s conservation advice will be kept under review and will be periodically updated to reflect this. Further information on JNCC’s conservation advice work is available on our 'Conserving MPAs' webpage.
Activities and Management
Last updated: April 2017
Management status: Progressing towards being well managed
The vulnerability assessment conducted for this site suggests it is unlikely to be moving towards its conservation objectives, but directed site condition monitoring data are needed to improve our confidence in this assessment. Licensable activities are being managed and progress is ongoing with regards to the recommendation of a fisheries management proposal to the European Commission.
This site forms part of the UK's contribution to the OSPAR Commission’s network of MPAs. As the UK is a contracting party to the OSPAR Commission, JNCC is committed to ensuring that the OSPAR MPA network is 'well-managed' by 2020
JNCC considers 'well-managed' to mean the timely progress of an MPA around the 'MPA management cycle'. This involves:
- The documentation of appropriate management information – conservation objectives, advice on activities capable of affecting the protected features of a site, and spatial information on the presence and extent of the protected features of a site.
- The implementation of management measures – management actions considered necessary to achieve the conservation objectives of a site.
- Site condition monitoring programmes – collecting the information necessary to determine progress towards a site's conservation objectives.
- Assessment of progress towards conservation objectives – using available information to infer whether or not a site is moving towards or has achieved its conservation objectives.
The sub-sections that follow provide an account of the progress of Offshore Overfalls MCZ around each of these four stages in the MPA management cycle:
1. The documentation of appropriate management information
- The conservation objectives and advice on activities capable of affecting the conservation status of the protected feature of this site are available under the Conservation Advice section. Further information is available on our 'Conserving MPAs' webpage.
- Spatial information on the presence and extent of the protected feature of this MPA is available via JNCC's MPA mapper.
- JNCC is in the process of developing downloadable MPA data packages where appropriate permissions to share datasets are in place.
2. The implementation of management measures
This section details progress towards the implementation of management measures for activities considered capable of affecting the conservation status of the protected features of the site. The protected features of the site are considered to be sensitive to pressures associated with fishing, 'licensable' activities, and military activity.
- There is evidence of mobile demersal, mobile pelagic and static gear effort within the MPA and UK and non-UK registered vessels have been active in the area.
- In the 6–12 nautical mile portion of the site, the Marine Management Organisation (MMO) can introduce measures (e.g. bylaws) where appropriate. Such measures would be developed following individual site assessments and subsequent stakeholder engagement. Where other Member States (OMS) have historic fishing access rights, any management proposals would need to follow processes laid out in Article 18 of the revised Common Fisheries Policy (CFP).
- The portion of the site which falls outside of 12 nm will be exclusively managed under the CFP. In accordance with Article 18, requests for management will be developed jointly between the UK Government and any Member States with a direct management interest in the area affected. The Marine Management Organisation (MMO) are the lead authority regarding the implementation of, and compliance with, any measures to managing fishing activity. Further information on progress is available on the Marine Management Organisation's webpages.
- Oil and gas – There are no current oil and gas activities within the MPA, however a plugged and abandoned well is located in the east of the site.
- Aggregate extraction – There are no aggregate licenses within the MPA, however an aggregate license area borders the north-west corner of the MPA boundary.
- Licensable activities that are taking place or may take place in the future within this MPA are managed in accordance with the clauses set out under Section 127 of The Marine & Coastal Access Act (2009). Under this clause, JNCC has a statutory responsibility to advise the regulator on developments that are capable of affecting (other than insignificantly) the protected features of the MPA and that may hinder the achievement of the site’s conservation objectives. JNCC considers that the existing marine licensing process is sufficient to ensure the management of licensable activities taking place, or that could take place in the future, that could have an impact on the protected features of this MPA.
- For further information, please see the Marine Management Organisation’s guidance on marine conservation zones and marine licensing.
- Further information on JNCC’s role in the provision of advice for licensed activities in the UK offshore area is available on JNCC’s offshore industry advice webpages.
- Low-level military activity may take place within the MCZ. The MoD have incorporated all designated MPAs into their Environmental Protection Guidelines (Maritime) and wider Marine Environmental and Sustainability Assessment Tool. These guidelines are used to manage MoD activity to minimise the associated risks to the environment.
3. Site condition monitoring
Site condition monitoring surveys are yet to take place within this MPA. Further information will be made available in the Monitoring section in due course.
4. Assessment of progress towards conservation objectives
No long-term condition monitoring data is available to determine whether the MPA is moving towards or has reached its conservation objectives. The site’s protected features have 'recover' conservation objectives, based on a vulnerability assessment that examined exposure to activities associated with pressures to which the protected features of the site are considered sensitive. This suggests that the site is unlikely to be moving towards its conservation objectives but site condition monitoring data would improve our confidence in this assessment. Further information will be provided in the Assessment section as it becomes available.
Last updated: October 2017
JNCC is currently leading on the development of a strategy for biodiversity monitoring across all UK waters, to include MPA monitoring. For MPAs, data and evidence collected from monitoring activities will aim to:
- Enable assessment of condition of the features within sites;
- Enable assessment of the degree to which management measures are effective in achieving the conservation objectives for the protected features;
- Support the identification of priorities for future protection and/or management; and,
- Enable Government to fulfil its national and international assessment and reporting commitments in relation to MPAs and help identify where further action may be required.
Information on monitoring of this MPA will be provided when it becomes available.
Last updated: October 2017
Assessments of the condition of designated features in offshore MPAs are required to report against our legal obligations. Ideally these assessments should be based on observed data, and then measured against targets for pre-defined indicators. However, for MPAs in offshore waters we do not always have the appropriate information to be able to do so. This is particularly true for seabed habitats, which are the main type of feature designated for protection in offshore MPAs.
To address these challenges, JNCC has been an active partner in the development of new approaches and tools for the assessment of habitats and species for a variety of national and international status reports.
Conservation Assessment Reports
Under Section 124 of the UK Marine & Coastal Access Act (2009), JNCC is required to report to Ministers every six years on the degree to which the conservation objectives of the protected features of Marine Conservation Zones (MCZs) have been achieved. Every six years from 2012, the Marine Act requires a report setting out how MCZs have performed against their conservation objectives, as well as the effectiveness of the network as a whole.
To date, three reports have been published, each setting out progress being made in implementing a Marine Protected Area network, covering the following areas:
- English inshore and English and Northern Irish offshore MPAs
- Welsh inshore and offshore MPAs
- Scottish inshore and offshore MPAs
Outputs of assessments that feed into Marine Act reporting also feed into reporting under other obligations.
Charting Progress 2 (CP2) published in 2010, is a comprehensive report on the state of the UK seas. It was published by the UK Marine Monitoring and Assessment Strategy (UKMMAS) community which has over 40 member organisations. The report was based on a robust, peer-reviewed evidence base and describes progress made since the publication of Charting Progress in 2005. It provides key findings from UK marine research and monitoring for use by policy makers and others, as we move towards the UK vision of clean, healthy, safe, productive and biologically diverse oceans and seas. The results from CP2 were incorporated into the UK Marine Strategy Part 1: UK Initial Assessment and Good Environmental Status published in 2012 under the UK Marine Strategy Regulations (2010). The UK Marine Strategy Part 1 (2012) also set out the UK’s definition for Good Environmental Status, which could be achieved by meeting a series of environmental targets. JNCC worked with other organisations in the UKMMAS community to develop a series of indicators that were used to assess progress against each of the targets and to report on progress made since 2012. The results of these assessments have been published in the UK Marine Strategy Part 1: UK Updated Assessment and Good Environmental Status in 2019. Detailed evidence used to make these assessments is available via the Marine Online Assessment Tool (MOAT). It also sets out proposals for updated high-level objectives, targets and operational targets to be used for 2018 to 2024, which build on those set in 2012.
It is worth noting the two other parts of the UK Marine Strategy: UK Marine Strategy Part Two: marine monitoring programmes, published in 2014 and UK Marine Strategy Part Three: programme of measures published in 2015. Updates to these will be made in 2020 and 2021 respectively.
OSPAR Quality Status Reports
Many of the assessments in the updated UK Marine Strategy Part 1 2019 were developed and produced in collaboration with other contracting Parties of the OSPAR Convention for the Protection of the North East Atlantic. In 2017 OSPAR Published its Intermediate Assessment (IA2017). The IA 2017 further develops OSPAR’s understanding of the marine environment of the North-East Atlantic and its current status. It demonstrates OSPAR’s progress towards realising its vision of a clean, healthy and biologically diverse North-East Atlantic, used sustainably. IA2017 follows on from OSPAR’s previous holistic assessment, the OSPAR Quality Status Report in 2010 (QSR2010) and in 2000 (QSR2000).
JNCC continues to develop and pilot tools for the assessment of marine habitats and species in offshore waters to improve the quality and transparency of our offshore MPA assessments, and contribute to the monitoring of marine biodiversity in UK waters. These tools cover methods for producing interim assessments of site features and their responses to pressures, as well as developing more robust indicators for determining condition of the features.
