North East of Farnes Deep MPA and HPMA

Please be advised that an MPA monitoring survey was undertaken in Dolphin Head HPMA and North East of Farnes Deep MPA and HPMA over the period of 13 September to 10 October 2023. Further information is available in the survey blog – this can be found on JNCC’s blog.

Status: Marine Conservation Zone (MCZ) / Highly Protected Marine Area (HPMA)

The North East of Farnes Deep MPA and HPMA is located approximately 55 km offshore from the north Northumberland coast, in the northern North Sea. This site information centre details information for both the North East of Farnes Deep MPA, designated in 2013, and the North East of Farnes Deep HPMA, designated in 2023 and which overlaps entirely with the existing MPA.

JNCC will dispense its obligations under Section 127 of the Marine & Coastal Access Act (2009) for both North East of Farnes Deep MPA and HPMA through the delivery of its conservation advice for the HPMA. For further information please see the Conservation Advice section below.

Site

Located approximately 55 km offshore from the north Northumberland Coast, in the northern North Sea, the North East of Farnes Deep MPA and HPMA is situated in an area of predominantly sandy sediment, and also include patches of gravelly sand and mud.

The seabed within the MPA and HPMA (herein referred to as ‘the site’) is a mix of highly mosaiced habitats, ranging from coarse sediments through to mixed sediments and mud. These are relatively stable habitats present, which support a diverse range of marine flora and fauna such as anemones, worms, molluscs, echinoderms and fish species.

North East of Farnes Deep was designated as a Marine Conservation Zone in January 2013 for subtidal coarse sediment and subtidal sand, with additional features subtidal mixed sediments, subtidal mud and Ocean quahog (Arctica islandica) designated in January 2016. North East of Farnes Deep was also designated as a HPMA in June 2023, extending protection to the entire marine ecosystem (seabed, water column, processes and all species) within the site.

More detailed site information can be found in the Site Timeline section and Summary section below.

Top

Site Timeline

After regional projects recommended Marine Conservation Zones (rMCZs) to Defra and the statutory nature conservation bodies in 2011, a formal public consultation on Tranche One rMCZs was held between December 2012 and March 2013, which resulted in North East of Farnes Deep being designated as an MCZ in November 2013. Additional features for the site were included in the formal public consultation on Tranche Two rMCZs between January and April 2015 and were officially designated in January 2016. In 2021, the area was identified as a candidate pilot Highly Protected Marine Area (HPMA) by JNCC through the English pilot HPMA process. It was subsequently designated in June 2023 as a Highly Protected Marine Area (HPMA) and overlaps entirely with the underlying MCZ.

The diagram below is a summary of the key milestones involved in the selection and designation of the North East of Farnes Deep MPA and HPMA.  More detail can be found in the Relevant Documentation section below.

Top

Relevant Documentation

The documents referred to below and any other historical documents relating to the North East of Farnes Deep MPA and HPMA were produced during the selection and designation process and therefore may be out of date. This Site Information Centre is the most up-to-date source of information for this site and will reflect any additional information gathered since these documents were produced.

JNCC's MCZ webpage provides further information about the Marine Conservation Zone site selection process and historic MCZ advice. Further information about the Highly Protected Marine Area site selection process and historic advice is available on JNCC’s HPMA webpage.

• North East of Farnes Deep HPMA Designation Order (2023) – Official description of the site designation as a HPMA under the Marine and Coastal Access Act (2009). The Designation Order includes boundary co-ordinates, conservation objectives and description of the designated feature.
• North East of Farnes Deep HPMA Factsheet – outlines why North East of Farnes Deep has been designated as a Highly Protected Marine Area (HPMA), provides an overview of the ecological importance of the site, where the site is located and current knowledge of the activities within the area.
• JNCC’s pre-consultation advice and post-consultation advice for Highly Protected Marine Areas proposed for designation in 2023.
• North East of Farnes Deep MCZ Amended Designation Order (2016) – Official description of the site, including additional features designated in Tranche Two.
• North East of Farnes Deep Designation Order (2013) – Official description of the site designation as an MCZ under the Marine and Coastal Access Act 2009. The Designation Order includes boundary co-ordinates, Conservation objectives and a list of the designated features.
• JNCC's formal conservation advice for this site is available in the Conservation Advice section.

Top

Summary

Last updated: July 2023

The information for this site summary was adapted from documents listed in the Evidence section. Please refer to this section for further details and information sources. The summary also incorporates any further information gathered since these documents were produced.



Site overview

The North East of Farnes Deep MPA and HPMA has a mix of highly mosaiced habitats ranging from coarse sediments such as sand, where several species of filter feeding sponges have been identified, through to mixed sediment areas and mud dominated seabed habitats. These wide-ranging, mostly stable habitats, support high levels of biodiversity in comparison to the wider Northern North Sea region, with at least 263 benthic and demersal species recorded. These include the phosphorescent sea pen (Pennatula phosphorea), common dragonet (Callionymus lyra), and squat lobsters that occur in relatively large numbers across the area, as well as the long-lived ocean quahog (Arctica islandica), a type of mollusc which is under threat across the broader North-east Atlantic. The complex sediment-dominated seabed habitats in this area are also important for the key life-cycle for a range of species including birds, marine mammals and fish. This includes spawning and nursery habitats for up to ten commercially important fish species. Furthermore, several mobile species have been recorded in this area, including the rare and regionally distinctive European smelt (Osmerus eperlanus), which is prey for larger fish, seabirds and marine mammals. At least seven nationally important seabird species and five marine mammal species have also been recorded within this area, including the harbour porpoise (Phocoena phocoena) and white beaked dolphin (Lagenorhynchus albirostris).

The large areas of muddy habitats, which cover over 27 km² (over 5% by area), are thought to be an important habitat for the storage of carbon. Overall, in English waters, seabed mud habitats have been identified to have a large stock of sequestered carbon, highlighting the importance of protecting and recovering this habitat as a nature-based solution to tackling climate change. This is the only offshore HPMA with blue carbon habitats.

The site depth ranges between 50 m and 100 m below chart datum; the deepest section of the site runs parallel to the western boundary and the shallowest section is in the south-east quarter. Geological/geomorphological seabed forms are present in the site and are of a depositional glacial nature and comprise part of the North-East Bank seabed mound or pinnacle.

Defra responded to the recommendations of the Benyon Review and committed to designate a number of pilot HPMAs in English waters. Following the analysis of responses from a public consultation, North East of Farnes Deep was also designated as a HPMA in June 2023; extending protection to the entire marine ecosystem (seabed, water column, processes and all species) within the site.

Further detail on the evidence for this site can be found in the Evidence section.

Site location: Co-ordinates for this site can be found in the Designation Orders for both the MCZ and the HPMA listed in the Relevant Documentation section.

Site area: 492 km².

Site depth range: The site depth ranges between 50 m and 100 m below chart datum; the deepest section of the site runs parallel to the western boundary and the shallowest section is in the south-east quarter.

Charting Progress 2 Biogeographic Region: Northern North Sea.

Site boundary description: The boundaries of the North East of Farnes Deep MPA and HPMA are simple rectangles that fully overlap, with the longest boundaries aligned broadly north–south.

Top

Evidence

Last updated: July 2023

The full overview of the various data used to support the North East of Farnes Deep MPA site identification, along with information on confidence in feature presence and extent is available in JNCC's advice on offshore Marine Conservation Zones proposed for designation in 2013, as well as the JNCC pre-consultation and post-consultation scientific advice for Tranche Two offshore Marine Conservation Zones proposed for designation in 2016.

The full overview of the various data used to support the North East of Deep HPMA site identification in alignment with the selected ecological criteria is available in JNCC’s pre-consultation advice and post-consultation advice for Highly Protected Marine Areas proposed for designation in 2023.

JNCC will be adding relevant survey data for this MPA and HPMA to its MPA mapper in due course.

Some of the data for this site have been collected through JNCC-funded or collaborative surveys and some through other means.



Survey and data gathering

• UK Combined Map (2021) – Full coverage of EUNIS Level 3 seabed habitat map integrating fine- and broad-scale maps.
• JNCC/Cefas Partnership Report No. 22: CEND0618 Survey Report: North East of Farnes Deep MCZ and Farnes East MCZ (2020) – Cefas and JNCC undertook a  survey of the North East of Farnes Deep (NEFD) and Farnes East (FRNE) Marine Conservation Zones (MCZ) between April and May 2018 in an effort to investigate existing and future management measures for this site.
• Extent of Physical Damage to Predominant and Special Habitats (BH3 indicator) – An indicator developed to evaluate to what extent the sea floor and its associated ecology, species and habitats are being damaged by human activities. It uses data from ICES, JNCC & EMODnet and is a combination of spatial analyses to extrapolate data and knowledge from local studies to larger areas.
• JNCC/Cefas Partnership Report Series No. 34: North East of Farnes Deep MCZ 2016 Survey Report (Version 3) (2020) – Cefas and JNCC undertook a survey of the North East of Farnes Deep MCZ on board the RV Cefas Endeavour cruise CEND1016 in May 2016 to collect an initial dataset for a monitoring time series.
• Offshore Habitat Features of Conservation Importance (FOCI) Data Points and Polygons – this geodatabase was created as a composite data product from a variety of input sources, including OSPAR, Natural England and JNCC surveys using the best available evidence.
• North East of Farnes Deep MCZ Verification Survey (2012) – JNCC collaborated on an MCZ verification survey with Cefas to North East of Farnes Deep MCZ, funded through the MB0120 Defra data collection programme (see survey report). Video, images and acoustic data were collected across the site.
• British Geological Survey Particle Size Analysis (PSA) Data Points – Particle Size Analysis of historical data was collated and used to identify habitat type within the MCZ.
• Marine Protected Areas: gathering/developing and accessing the data for the planning of a network of Marine Conservation Zones (MB0102) – A consortium led by ABPmer were commissioned to develop a series of biophysical data layers to aid the selection of Marine Conservation Zones (MCZs) in England and Wales.



Data analysis reports

• North East of Farnes Deep Marine Conservation Zone (MCZ) Monitoring Report (2016) (2020) – This report provides evidence on the designated features of the site, primarily derived from the first dedicated monitoring survey conducted in 2016, with reference and qualitative comparison to survey data from 2012. The 2016 data will form the first point in a time series, against which change can be monitored through time.
• Management Units for cetaceans in UK waters (2015) – Inter-Agency Marine Mammal Working Group (IAMMWG) report which sets out the final agreed Management Units (MUs) for the seven most common cetacean species in UK waters.
• North East of Farnes Deep rMCZ Post-survey Site Report (2015): Cefas undertook analysis of the data collected on the 2012 survey of the North East of Farnes Deep MCZ. The data, analysed as part of the MB0120 Defra contract, led to the creation of a revised habitat map that has been used to inform the presence of broad-scale habitats and habitat FOCI within the MCZ.
• Community analysis of North East of Farnes Deep MCZ data (2014) (2016) – JNCC contracted Seastar Survey Ltd to complete a community analysis of offshore MCZ grab and video data to establish biotopes.

Additional relevant literature

References for further supporting scientific literature consulted during the identification of this site can be found in the annexes of our advice within the Relevant Documentation Section. Please be aware that although these sources contain information in relation to this site, they do not necessarily represent the views of JNCC.

• Carter, M.I.D., Boehme, L., Duck, C.D. et al. (2020) Habitat-based predictions of at-sea distribution for grey and harbour seals in the British Isles. Sea Mammal Research Unit, University of St Andrews, Report to BEIS, OESEA-16-76/OESEA-17-78.
• Gregg, R., Elias, J.L., Alonso et al. (2021). Carbon storage and sequestration by habitat: a review of the evidence (second edition). Natural England Research Report NERR094.
• Katara, I., Peden, W.J., Bannister, H. et al. 2021. Conservation hotspots for fish habitats: A case study from English and Welsh waters. Regional Studies in Marine Science, 44, p. 101745.
• JNCC. 2021. Statistics on the extent of blue carbon habitats to support MPA decision-making in Secretary of State waters. Defra Project MB0150. Report 2/2: Results.
• Parker, R., Benson, L., Graves, C., Kröger, S., Vieira, R. 2020. Carbon stocks and accumulation analysis for Secretary of State (SoS) region. Cefas Project Report for Defra, 42 pp.
• Paxton, C.G.M., Scott-Hayward, L., Mackenzie, M., Rexstad, E. & L. Thomas, L. 2016. Revised Phase III Data Analysis of Joint Cetacean Protocol Data Resource JNCC Report No. 517.
• Waggitt, J.J., Evans, P.G.H., Andrade, J., et al. 2020. Distribution Maps of Cetacean and Seabird Populations in the North-East Atlantic. Journal of Applied Ecology, 57, 253–269.



Knowledge gaps

If you are aware of any additional information not referred in the Relevant Documentation section listed on the main page or the annexes of the advice documents, please contact us.

Top

Conservation Advice

Last updated: July 2023

Updated formal conservation advice for the North East of Farnes Deep HPMA is now available. Further information on the approach used to develop this advice is available in the HPMA High-level Conservation Advice developed jointly by JNCC and Natural England.

JNCC considers that the conservation objectives for North East of Farnes Deep MPA will be furthered or least hindered if the conservation advice for the HPMA is followed as its protection supersedes the original MCZ designated in 2016. Therefore, JNCC dispenses its obligations under Section 127 of the Marine and Coastal Access Act 2009 for both North East of Farnes Deep MPA and HPMA through the delivery of its conservation advice for the HPMA.

You may also find it useful to refer to this advice if you are:

• intending to carry out any licensed activity in or near the site and need to find out how to operate within the law;
• an authority providing advice on specific proposals; and/or
• an authority responsible for putting management measures in place; and/or
• preparing or providing information for an impact assessment. You can find further information on undertaking MCZ impact assessments on the Marine Management Organisation’s marine licensing webpage.

We will engage with stakeholders to identify any lessons which JNCC can learn from customers who have used the advice, with a view to continuing to ensure it is fit-for-purpose. Should you have any queries regarding the conservation advice for this site or know of any information pertinent to the site that we should be aware of, please contact us at OffshoreMPAs@jncc.gov.uk

The following table provides an overview of the components of the conservation advice and provides hyperlinks to each of the products for this site. These elements together form JNCC’s formal conservation advice for this site and should be read in conjunction with each other. This advice reflects the most up-to-date evidence held by JNCC (correct as of July 2023).

Document	Overview
High-level Conservation Advice for Public Authorities on Highly Protected Marine Areas	Provides generic advice to Public Authorities on whether activities are capable of damaging or otherwise affecting the protected marine ecosystem feature of an HPMA; specifically whether they are likely to hinder the conservation objective of a Highly Protected Marine Area or may not hinder it, if undertaken at non-damaging levels.
North East of Farnes Deep HPMA Conservation Advice document	Provides ecological information about the HPMA, the conservation objective, a description of the protected marine ecosystem feature and JNCC's view of its condition and the conservation benefits of affording the HPMA appropriate protection.
North East of Farnes Deep HPMA Advice on Operations (Excel workbook)	Provides information on those human activities that are capable of impacting the protected feature of the HPMA. These activities are grouped into those which are likely to hinder the site’s conservation objective and those which may not hinder the site conservation objective if carried out at non-damaging levels.
Advice on Operations Guidance	Provides guidance explaining the contents of the Advice of Operations workbook and how they can be considered when assessing the impacts on the site from a human activity

These resources are available from JNCC's Resource Hub.

Top

Monitoring

Last updated: July 2023

JNCC is planning to undertake a baseline monitoring survey of the North East of Farnes Deep HPMA within a year of designation in order to establish the first point in a time series of data to determine progress of the HPMA towards achieving its conservation objective. Previously collected data from the MCZ will be used to establish data gaps and help target collection of new information to support evaluation of progress towards the objective of a Highly Protected Marine Area (HPMA).

Top

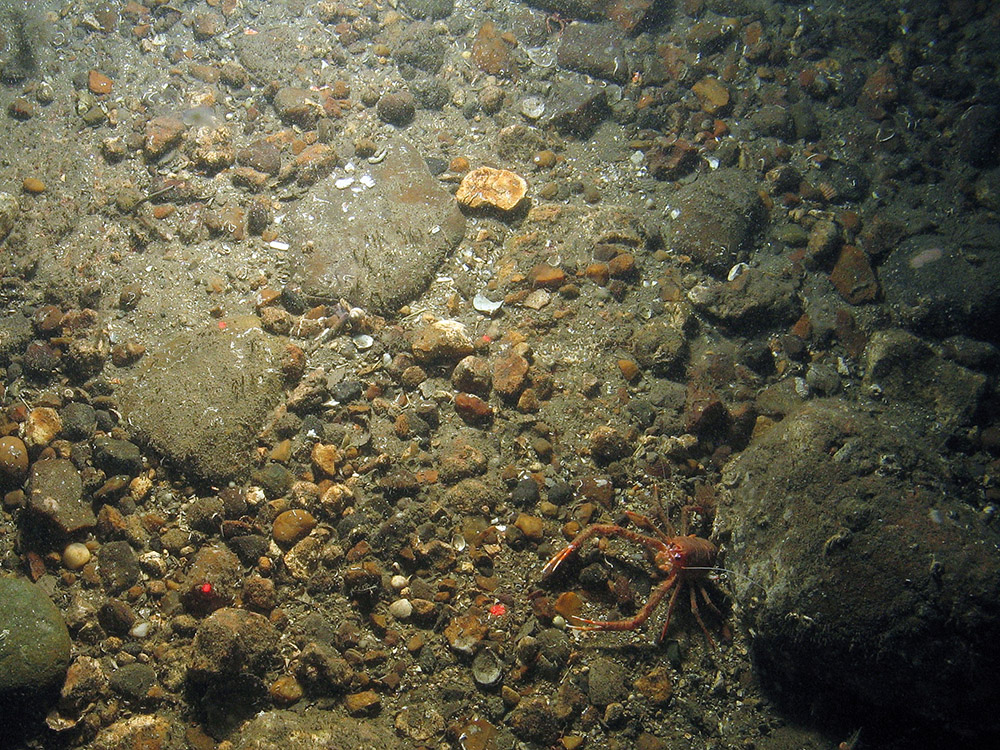

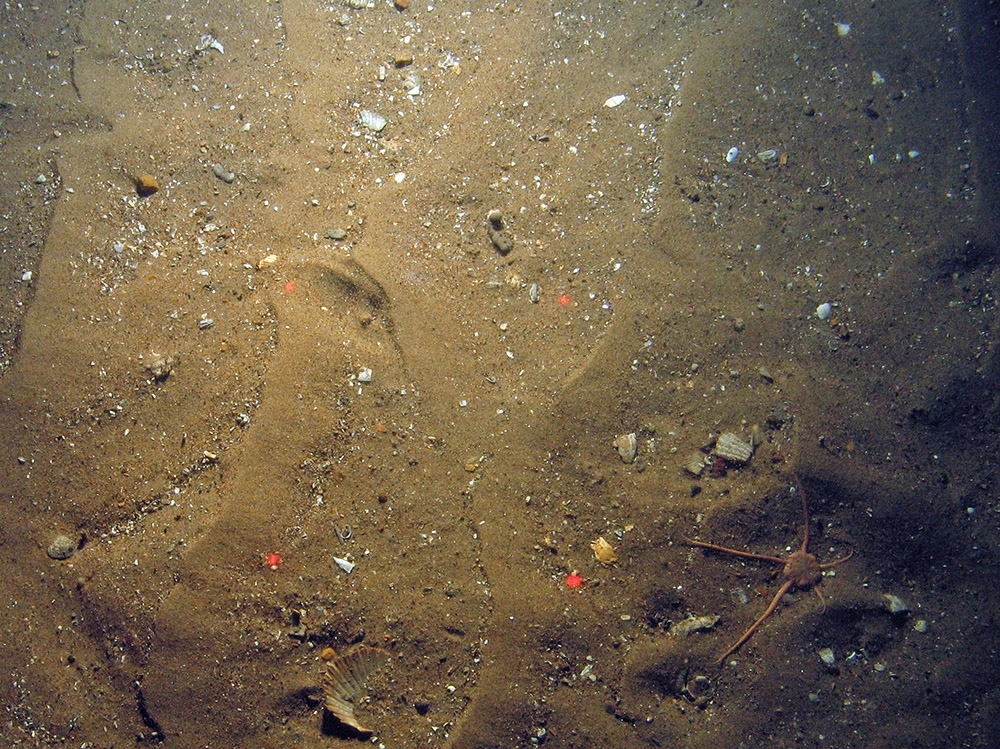

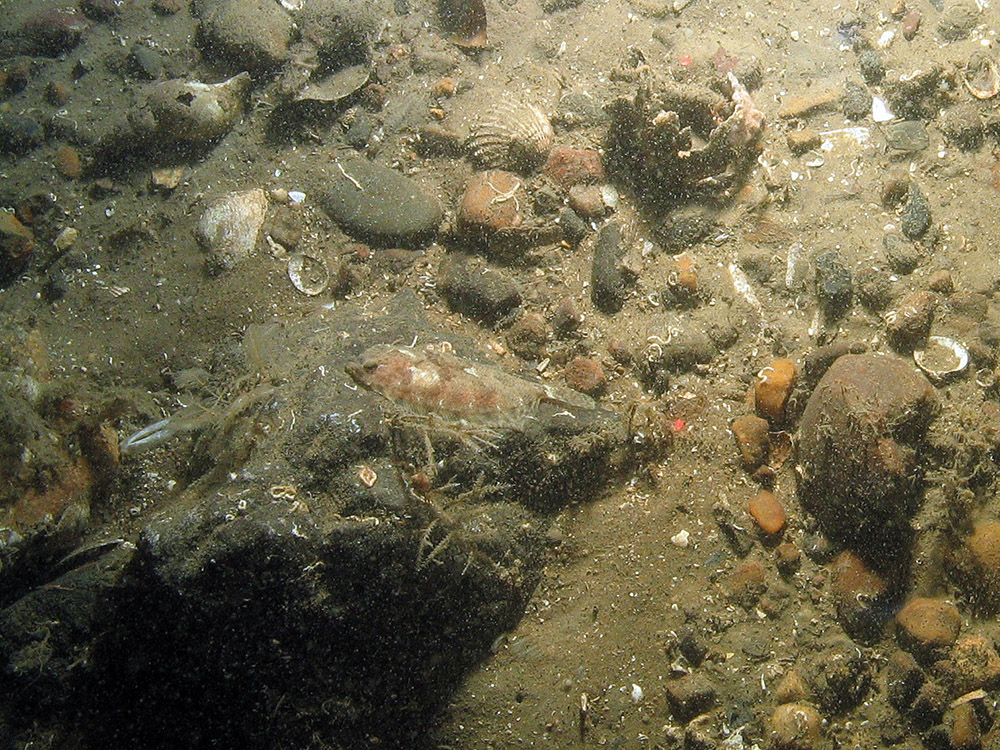

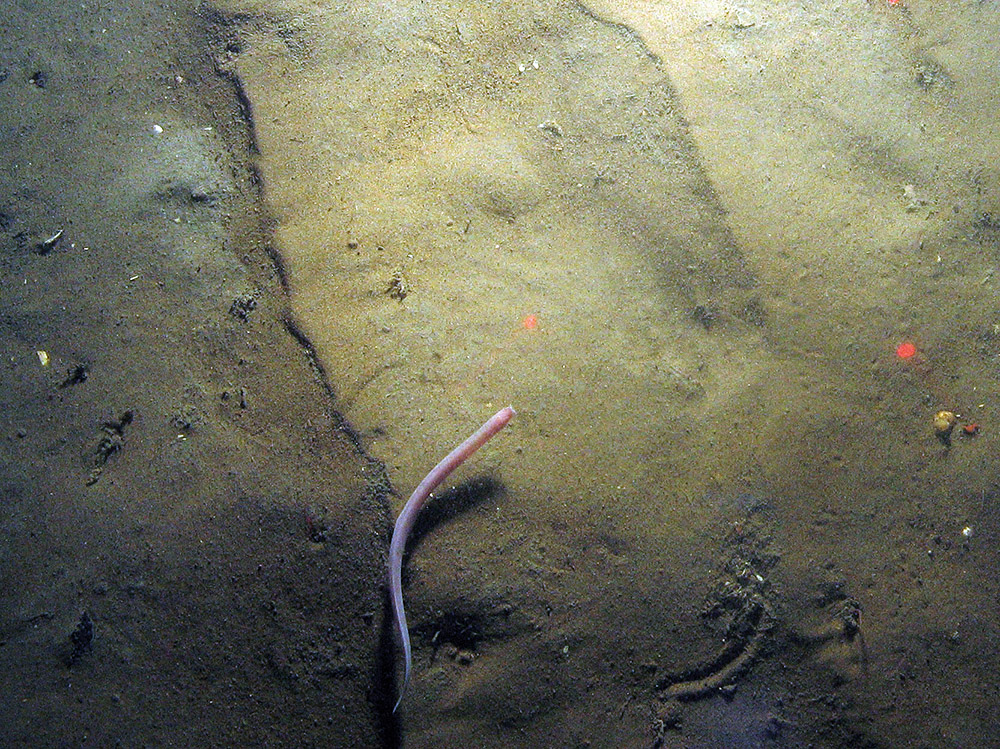

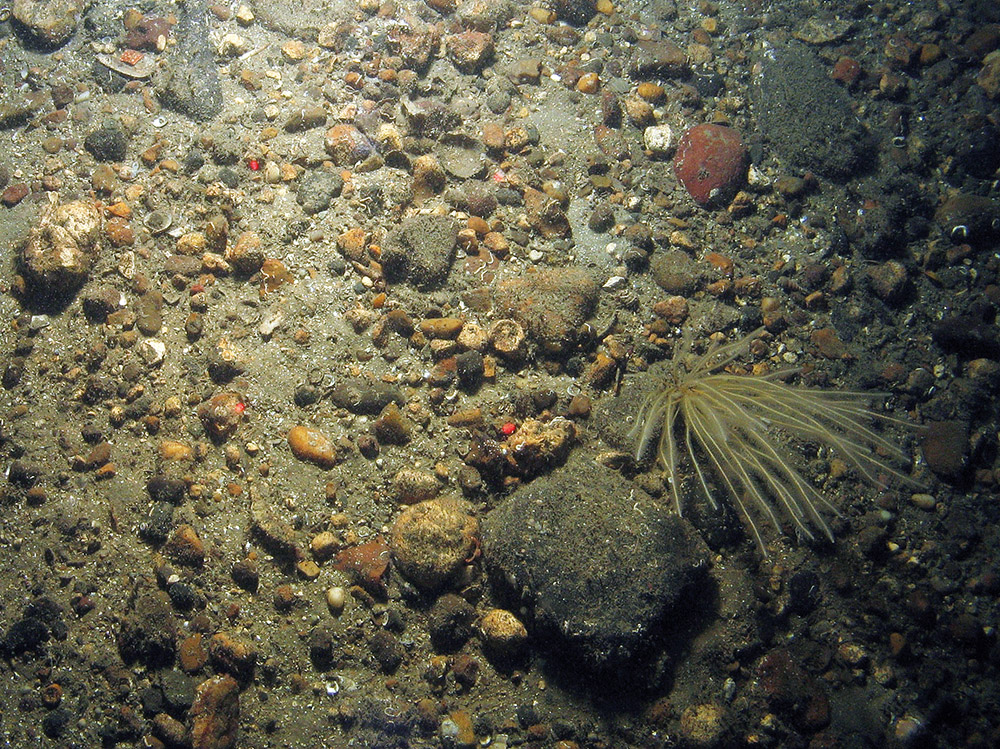

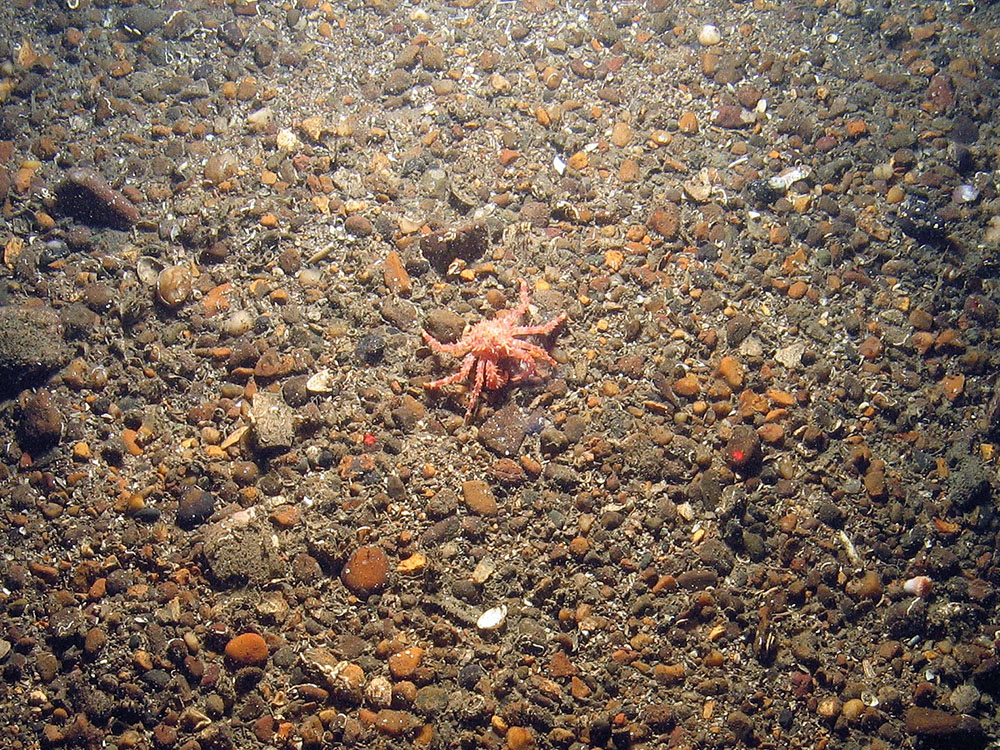

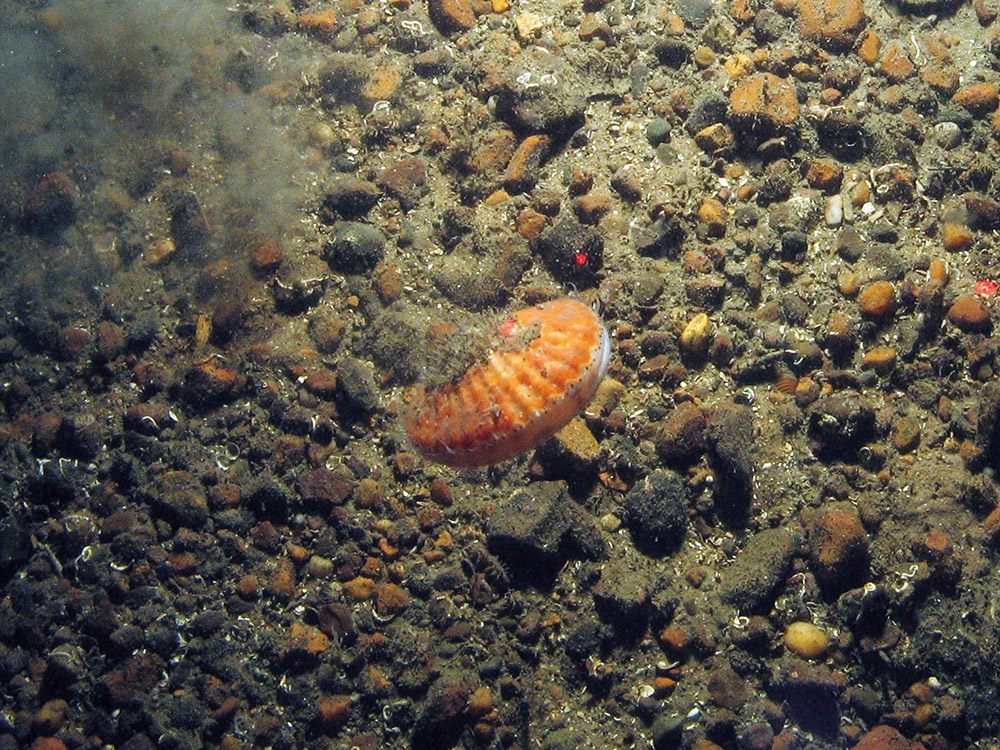

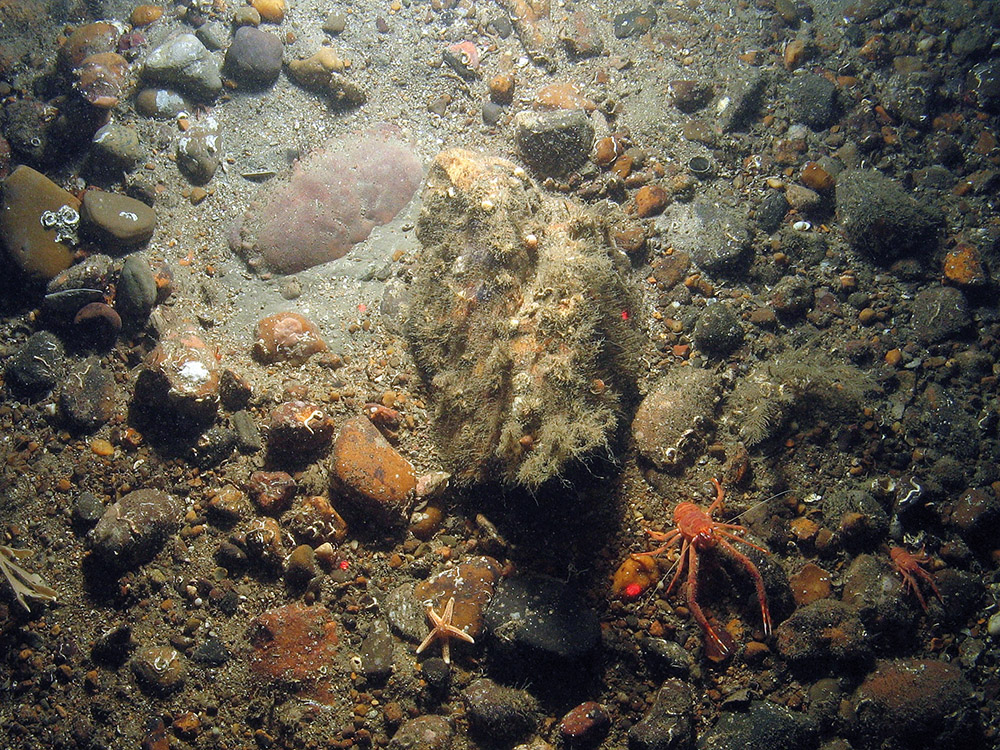

Image Gallery
