Greater Haig Fras MPA

Updated conservation advice was produced for Greater Haig Fras MCZ in March 2018 and is available in the Conservation Advice section below.

Status: Marine Conservation Zone (MCZ)

Greater Haig Fras MCZ is an offshore site situated to the south-west of England, approximately 120 km west of Land’s End in Cornwall.

Video

Top

Site

Situated to the south west of England, Greater Haig Fras MCZ is an offshore site approximately 120 km west of Land’s End in Cornwall.

The site protects approximately 2,041 km2 of continental shelf seabed that surrounds an isolated fully submarine bedrock outcrop (the Haig Fras rock complex geological feature), the only substantial area of rocky reefs in the Celtic Sea beyond the coastal margin and inshore waters. The seabed surrounding this outcrop has a diverse range of sediment types from mud to coarse and mixed sediments. These habitats are known to support a range of animal species, including those which live within the sediments such as small burrowing worms and bivalve molluscs to urchins, starfish and some crustaceans that live on the sediment surface.

More detailed site information can be found in the Summary section below.

Map displaying the Greater Haig Fras MPA boundary and associated protected feature data. Visit JNCC's MPA Mapper to further view and explore data for this MPA.


Legislation

Legislation behind the designation: Marine and Coastal Access Act (2009)



Protected features

EUNIS Code: Protected Feature Features Type
A5.1: Subtidal coarse sediment Broad-Scale Habitat
A5.2: Subtidal sand Broad-Scale Habitat
A5.3: Subtidal mud Broad-Scale Habitat
A5.4: Subtidal mixed sediments Broad-Scale Habitat
Sea-pen and burrowing megafauna communities Habitat Feature of Conservation Importance
Haig Fras rock complex Geological Feature

Specific information on the conservation objectives relating to this site is provided in the Conservation Advice section.

The acquisition of new data may result in updates to our knowledge on feature presence and extent within this site. The most up-to-date information is reflected on the map at the top of the page and in JNCC's MPA mapper, with the evidence underpinning available within the Evidence section below.

Top

Site Timeline

The diagram below is a summary of the key milestones involved in the selection and designation of Greater Haig Fras MCZ.  More detail can be found in the Relevant Documentation section below.


Top

Relevant Documentation

The documents referred to below and any other historical documents relating to Greater Haig Fras MCZ were produced during the selection and designation process and therefore may be out of date. This Site Information Centre is the most up-to-date source of information for this MPA, and will reflect any additional information gathered since these documents were produced. Further information about the Marine Conservation Zone site selection process and historic MCZ advice is available on JNCC's MCZ webpages.

Top

Summary

Last updated: October 2017

The information for this site summary was adapted from documents listed in the Relevant Documentation section and incorporates any further information gathered since this advice was produced.



Site overview

Greater Haig Fras MCZ is situated approximately 120 km offshore from the south-west of England. It contains the geological feature, the Haig Fras rock complex. This fully submarine granite outcrop, approximately 45 km long and 15 km wide, runs diagonally through the site. The area of continental shelf that surrounds this rock outcrop presents a wide range of sediment types from mud to coarse and mixed sediments.

The subtidal rocky habitat within this site is already protected by Haig Fras SAC, but the broad-scale sedimentary habitats are now offered protection as features of the Greater Haig Fras MCZ. This includes Subtidal coarse sediment, Subtidal sand, Subtidal mud, and Subtidal mixed sediments. The variety of subtidal sediments present here support a range of animals including many species of polychaete worm and bivalve mollusc that live within the sediment, and on the surface of the sediment epifaunal species including echinoderms such as sea urchins and starfish are recorded. In the deeper areas of the site, a particular type of mud habitat known as Sea-pen and burrowing megafauna communities occurs, which is also an OSPAR Threatened and/or Declining habitat across the North-east Atlantic. The burrowing activity of crustaceans such as mud shrimps and the Norway lobster Nephrops norvegicus has an important functional role, allowing oxygen penetration deeper into the sediment, releasing nutrients, and increasing the structural complexity of the habitat. Although characterised by Nephrops and sea-pen, this habitat also supports a rich community of animals living within the sediment.

In addition to the Haig Fras SAC which is completely contained within the boundary of the Greater Haig Fras MCZ, a number of other MPAs are located close by. North-West of Jones Bank MCZ (approximately 9 km south of the southern site boundary) protects the same broad-scale habitats as well as the habitat FOCI Sea-pen and burrowing megafauna communities and thereby contributes to adequacy and replication targets for this region. East of Haig Fras MCZ (approximately 40 km to the east) also protects a range of broad-scale habitats. Further detail on the evidence for this MCZ can be found on the Evidence section.

Site location: Co-ordinates for this MCZ can be found in the Designation Order listed in the Relevant Documentation section.

Site area: 2,041 km2. Greater Haig Fras MCZ is similar in size to the county West Sussex (1,991 km2) in the south of England.

Site depth range:  Greater Haig Fras MCZ varies in depth from less than 50 m over the rock outcrop, to 200 m depth over the surrounding seabed.

Charting Progress 2 biogeographic region: Western Channel and Celtic Sea.

Site boundary description: The western boundary of Greater Haig Fras MCZ aligns with the UK Continental Shelf Limit. The remainder of the site has been drawn to encompass the entirety of the geological feature Haig Fras Rock Complex and Haig Fras SAC, with surrounding areas of sediment. The boundary is in accordance with the MCZ Ecological Network Guidance, which advises using a minimum number of simple lines to delineate the site.

Top

Evidence

Last updated: October 2017

The full overview of the range of data used to support site identification, along with information on confidence in feature presence and extent is available in JNCC's Tranche Two pre-consultation and post-consultation advice to Defra. JNCC will be adding relevant survey data for this MPA to its MPA mapper in due course.

Some of the data for this MCZ have been collected through JNCC-funded or collaborative surveys and some through other means. Data from these surveys provide direct evidence confirming the presence of the protected features within the site. As this MCZ contains the Haig Fras SAC within its boundary entirely, any data gathered from surveys of the SAC will be relevant to the sedimentary and geological features of the MCZ. For more information see the Haig Fras SAC.



Survey and data gathering

  • National Oceanography Centre Southampton, JC124 seabed monitoring (2015) – NOC Southampton carried out seabed monitoring at Greater Haig Fras MCZ as part of the DEFRA funded project "Novel AUV and Glider deployments to inform future MPA and MSFD monitoring strategy in UK shelf waters?". Acoustic data were collected from a location previously surveyed in 2012 using an Autonomous Underwater Vehicle (AUV) deployed from RRS James Cook (cruise code, JC124). The objective was to test the feasibility of shallow-water high-resolution repeat mapping, and evaluate the amount of 'natural' change shown by the studied seabed habitats and fauna over the three-year period.
  • Marine Institute Nephrops survey (2012–2015) – The Marine Institute collected underwater video survey data at stations in the Greater Haig Fras MCZ, as part of a Nephrops stock assessment survey of the wider 'Labadie, Jones and Cockburn Banks' ICES assessment area (Functional Unit 20-21). Data verifying the presence of the mud habitat 'Sea-pen and burrowing megafauna communities' were recorded.
  • Gardline Geosurvey (2014) – Collected full coverage multibeam bathymetry and backscatter data within the southern area of Greater Haig Fras MCZ. Data were collected from MV Vigilant using a hull mounted EM2040 dual head multibeam echo sounder.
  • JNCC/Cefas Greater Haig Fras rMCZ Survey (MB0120) (2012) – JNCC and Cefas undertook a survey of Greater Haig Fras MCZ to verify the predicted habitats within the site (RV Cefas Endeavour, CEND 10/12). Multibeam bathymetry data were collected to the north of Haig Fras SAC along corridors spaced 5 km apart and opportunistically while transiting between the 53 ground-truth sample stations. Grab samples were collected from all stations, while video and still images were taken at 23 stations.
  • Survey data were also collected within Haig Fras SAC to infill areas of poor survey coverage from the 2011 survey. Full coverage multibeam and backscatter data were obtained from survey blocks not covered in 2011, eight underwater video and 11 additional grab stations were sampled.
  • British Geological Survey Particle Size Analysis (PSA) data – Sediment samples from historical BGS surveys provide information on the presence and extent of the broad-scale habitats: Subtidal coarse sediment, Subtidal sand, Subtidal mud and Subtidal mixed sediments.



Data analysis reports

Analyses of data gathered as part of the surveys listed above, as well as other relevant data analysis products, are available via the following reports:

  • Greater Haig Fras MCZ community analysis (2016) – JNCC contracted Seastar Survey Ltd to complete a community analysis and identify biotopes from offshore MCZ grab and video data gathered to provide evidence to underpin the MCZ designation. Biotopes were assigned using the Marine Habitat Classification for Britain and Ireland (JNCC 2015) after multivariate analysis of the survey data. The following biotopes were found within Greater Haig Fras MCZ:
    *MHCBI Biotope

    EUNIS code(level 4)

    Broad-Scale Habitat

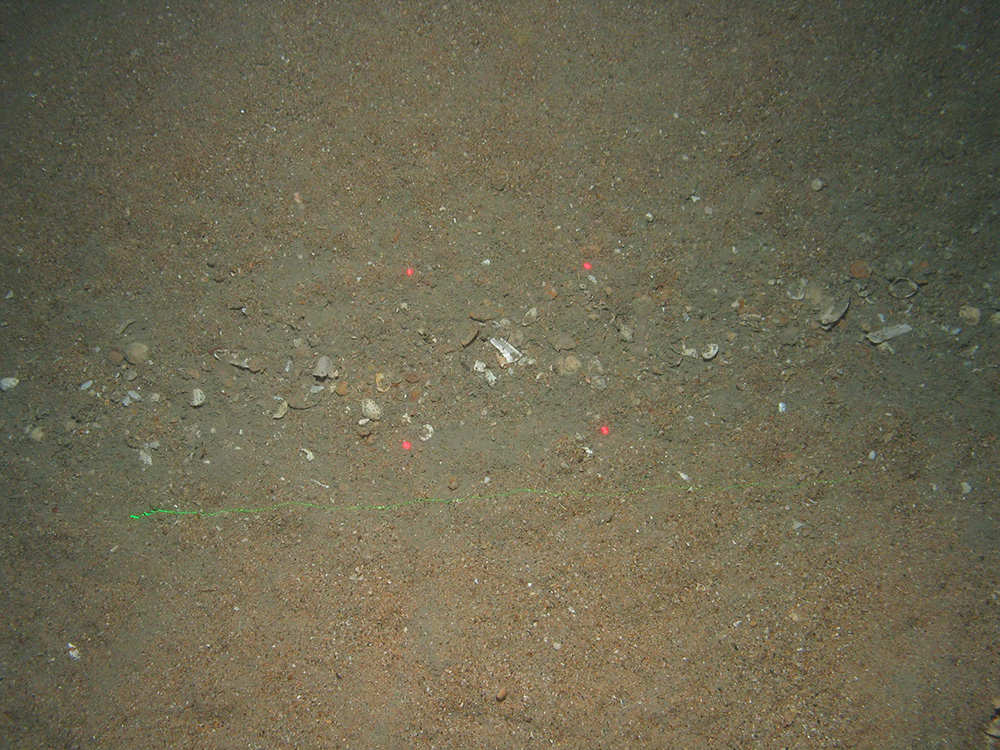

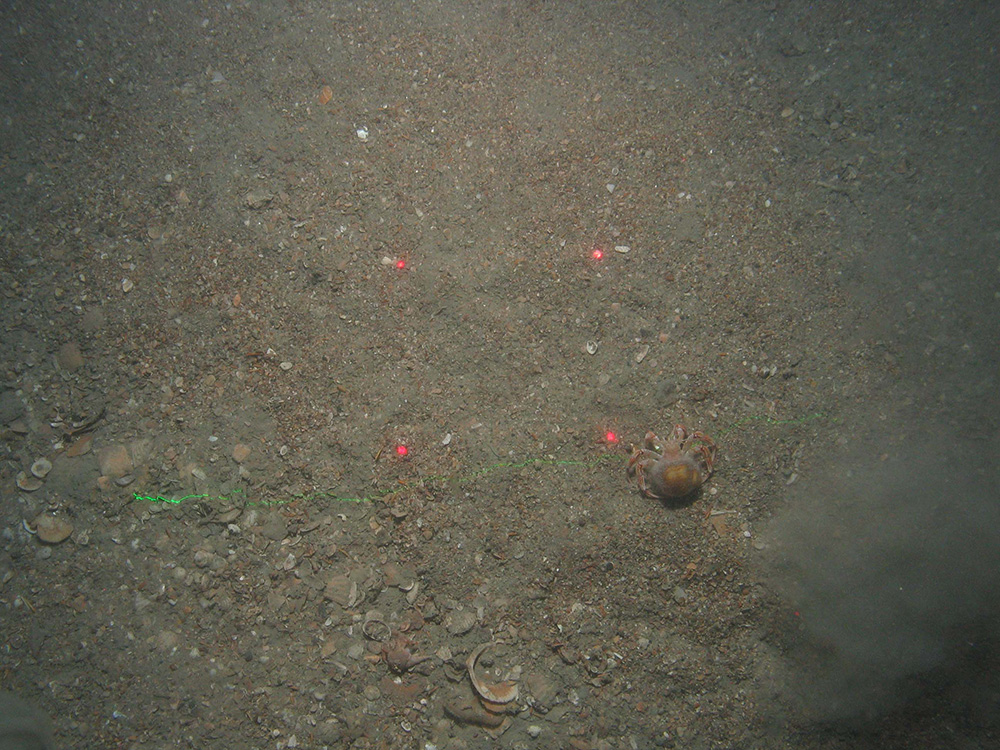

    SS.SCS.OCS Offshore circalittoral coarse sediment

    A5.15

    Subtidal coarse sediment

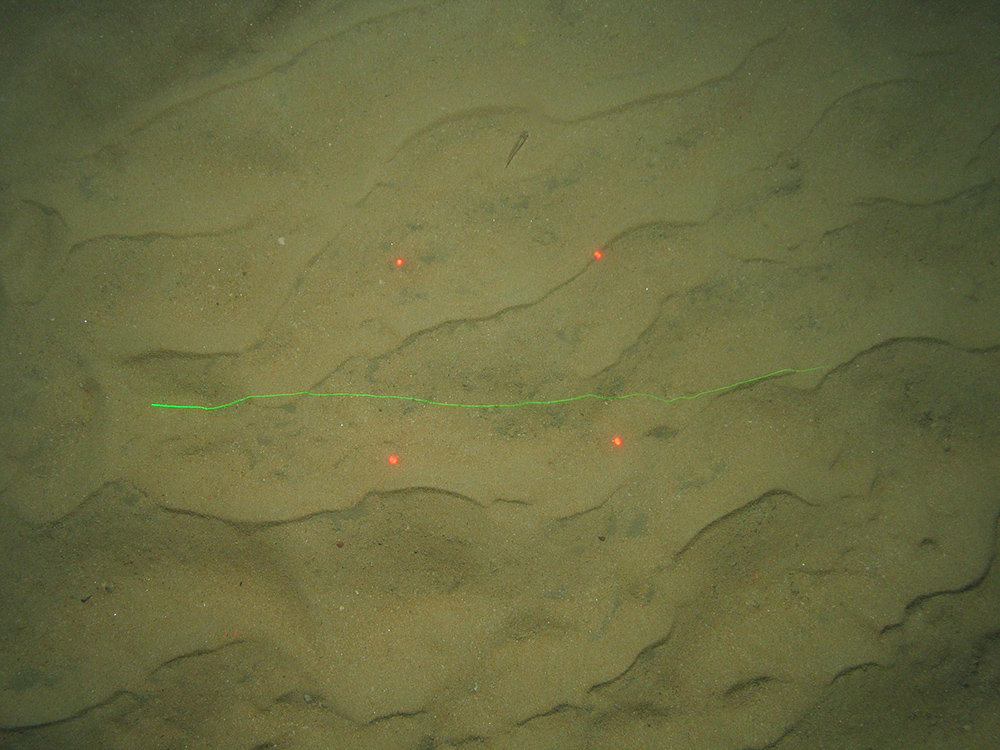

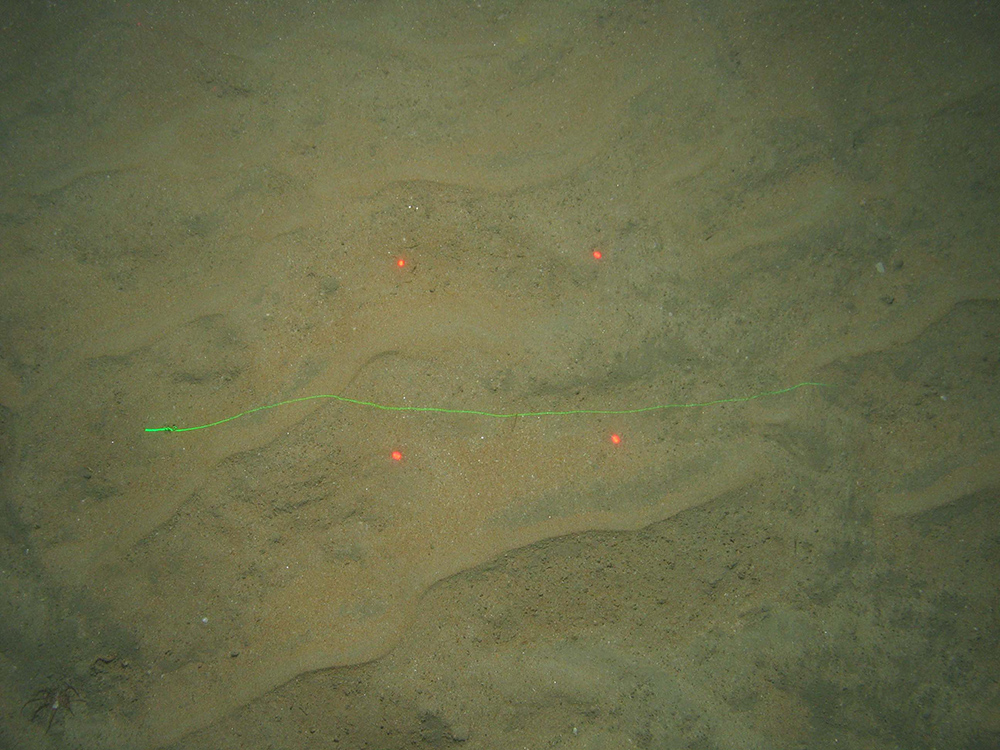

    SS.SSa.OSa Offshore circalittoral sand

    A5.27

    Subtidal sand

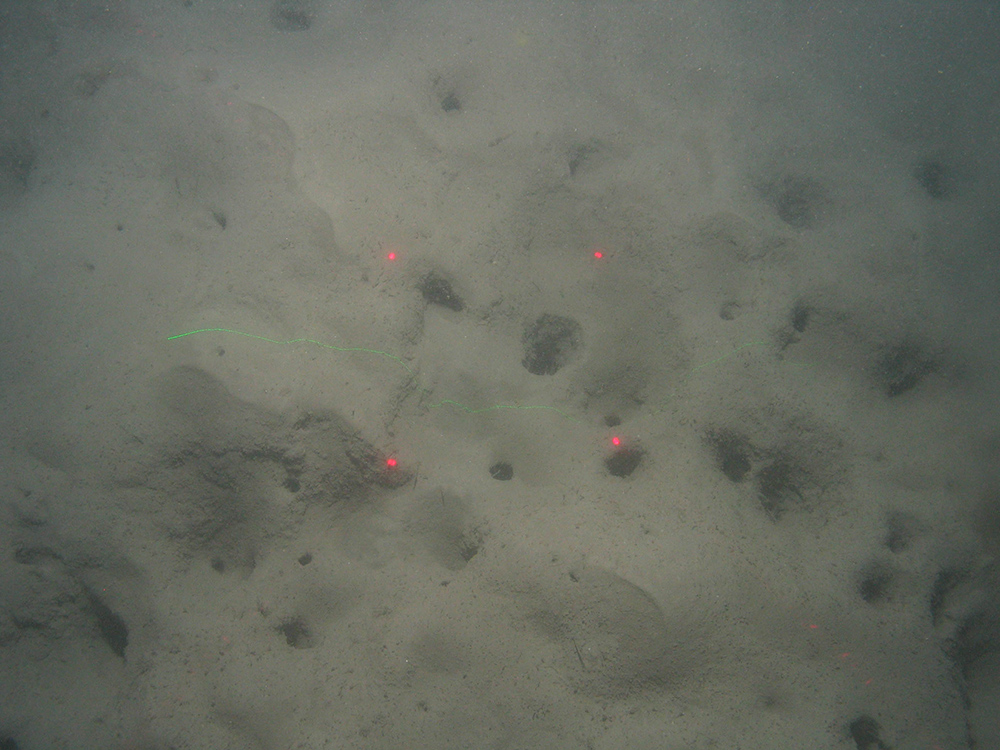

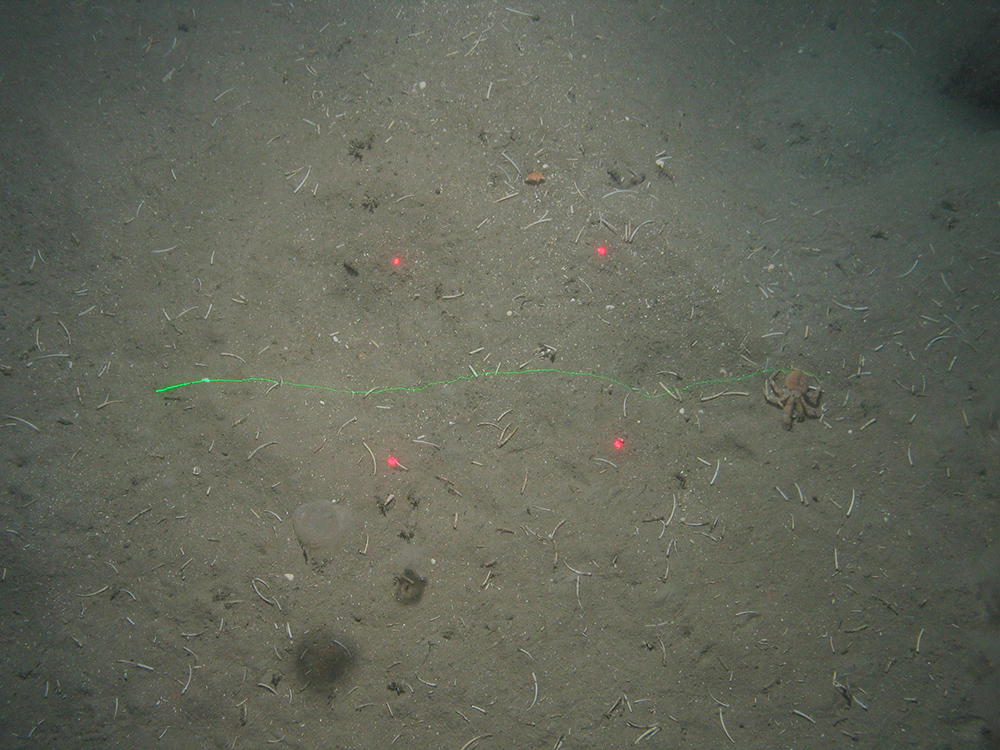

    SS.SMu.OMu Offshore circalittoral mud

    A5.37

    Subtidal mud

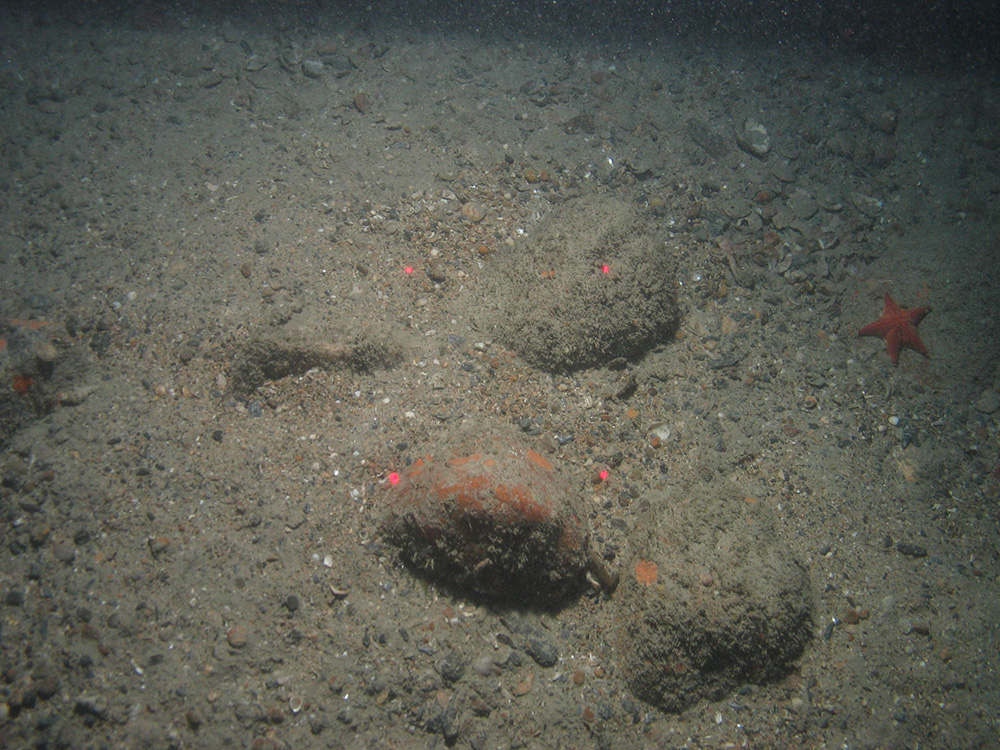

    SS.SMx.OMx Offshore circalittoral mixed sediment A5.45

    Subtidal mixed sediments

    * Marine Habitat Classification for Britain and Ireland (JNCC 2015).



  • EUSeaMap (2016) – Provides supporting information on the presence and extent of Subtidal coarse sediment, Subtidal sand, Subtidal mud and Subtidal mixed sediments from a predictive seabed habitat map of European waters.
  • Marine Institute Nephrops survey reports (2013-2015) – Provide results and analysis from Nephrops stock assessment surveys of areas FU 20–21 in 2006, 2012, 2013, 2014 and 2015, which sampled within and around the Greater Haig Fras MCZ. Nephrops burrow densities and abundance of sea-pens are presented from underwater video survey.
  • Mapping of the Haig Fras Site of Community Importance (SCI) (2015) – Survey data collected in 2011 and 2012 by JNCC and Cefas were analysed to map the full extent of reefs at Haig Fras cSAC/SCI. Maps depicting the distribution of identified EUNIS habitat types and Annex I reefs are presented.
  • Greater Haig Fras rMCZ post-survey site report (MB0120) (2015) – This report provides an updated map of the presence and estimated extent of habitats within the site. Survey data to support this were collected jointly by Cefas and the JNCC and Gardline Geosurvey personnel at the Greater Haig Fras rMCZ site during July 2012 and March 2014, respectively.
  • Mapping of Geological and Geomorphological Features (MB0102 Task 2A) (2009) – Defra commissioned a contract to collate data from a range of sources and map geological and geomorphological features, including the Haig Fras rock complex.



Additional relevant literature

References for further supporting scientific literature consulted during the identification of this site can be found in the annexes of our advice. Please be aware that although these sources contain information in relation to this MPA, they do not necessarily represent the views of JNCC.



Knowledge gaps

If you are aware of any additional information not referred to above, in the Relevant Documentation section, or the annexes of the MCZ advice documents, please contact us.

Top

Conservation Advice

Last updated: March 2018

Updated formal conservation advice is now available for this MPA. Further information on the approach used to develop this advice is available on our 'Conserving MPAs' webpage, along with a Glossary of Terms used in JNCC conservation advice and a short video explaining how to use the conservation advice packages.

You must refer to this advice if you:

  • undertake an MCZ assessment for a plan or project that could impact the site;
  • provide information for such an assessment;
  • respond to specific measures to further the conservation objectives for the site; and
  • consider the need to put new or additional management measures in place.

You may also find it useful to refer to this advice if you:

  • carry out any other activity that could impact the site.

We will engage with stakeholders to identify any lessons which JNCC can learn from customers who have used the advice, with a view to continuing to ensure it is fit-for-purpose.

The following table provides an overview of the components of the conservation advice, and provides hyperlinks to each of the products for this MPA. These elements together form JNCC’s formal conservation advice for this site and should be read in conjunction with each other. This advice reflects the most up-to-date evidence held by JNCC (correct as of March 2018).

Document

Overview

Background Information

Explains the purpose of the advice and when it must be referred to.

Conservation Objectives



Supplementary Advice on the Conservation Objectives (SACO)

The Conservation Objectives set out the broad ecological aims for the site. JNCC provides supplementary advice in the SACO which is essential reading to support interpretation of these conservation objectives.

You can use these documents to assess the impacts of your planned activity on the important attributes of the site.

Please note our current understanding of whether the available evidence indicates that each attribute needs to be restored or maintained is not provided here. However, links to available evidence for the site are provided and should you require further site-specific information for the site, please contact us.

Conservation Advice Statements

These statements provide a summary of the Supplementary Advice on the Conservation Objectives (SACO).

  • Site condition presents our up-to-date understanding of the condition of features within the site;
  • Conservation benefits which the site can provide, these help you understand what is important about the site and why it needs protecting; and
  • Conservation measures which JNCC considers are needed to support achievement of the conservation objectives. These provide clarity around measures needed to support restoration or maintenance of the feature(s) within the site.

Advice on Operations

Provides information on the activities capable of affecting site integrity and therefore achievement of the site’s conservation objectives.

This is a starting point for determining potential management requirements. It does not take into account the intensity, frequency or cumulative impacts from activities taking place. It is simply to advise you of the possible adverse impacts that your activity can have on a MPA’s features.

Use the advice on operations to determine those pressures your activity causes that could harm the habitat and/or species features of the site.

These resources are available on JNCC's Resource Hub.

Top

Activities and Management

Last updated: October 2017

Management status: Progressing towards being well managed

The vulnerability assessment conducted for this site suggests it is unlikely to be moving towards its conservation objectives, but directed site condition monitoring data is needed to improve our confidence in this assessment. Progress is ongoing with regards to the recommendation of fisheries management proposals to the European Commission.

This site forms part of the UK’s contribution to the OSPAR Commission’s network of MPAs. As the UK is a contracting party to the OSPAR Commission, JNCC is committed to ensuring that the OSPAR MPA network is 'well-managed' by 2020.

JNCC considers 'well-managed' to mean the timely progress of an MPA around the 'MPA management cycle'. This involves:

  1. The documentation of appropriate management information – conservation objectives, advice on activities capable of affecting the protected features of a site, and spatial information on the presence and extent of the protected features of a site.
  2. The implementation of management measures – management actions considered necessary to achieve the conservation objectives of a site.
  3. Site condition monitoring programmes – collecting the information necessary to determine progress towards a site's conservation objectives.
  4. Assessment of progress towards conservation objectives – using available information to infer whether or not a site is moving towards or has achieved its conservation objectives.

The sub-sections that follow provide an account of the progress of Greater Haig Fras MCZ around each of these four stages in the MPA management cycle:



1. The documentation of appropriate management information

  • The conservation objectives and advice on activities capable of affecting the conservation status of the protected feature of this site are available under the Conservation Advice section. Further information is available on our 'Conserving MPAs' webpage.
  • Spatial information on the presence and extent of the protected feature of this MPA is available via JNCC’s MPA mapper.
  • JNCC is in the process of developing downloadable MPA data packages where appropriate permissions to share datasets are in place.



2. The implementation of management measures

This section details progress towards the implementation of management measures for activities considered capable of affecting the conservation status of the protected features of the site. The protected features of the site are considered to be sensitive to pressures associated with fishing and 'licensable' activities.

Fisheries

  • There is evidence of demersal fishing effort by both UK and non-UK registered vessels within the Greater Haig Fras MCZ.
  • The Marine Management Organisation (MMO) is the lead authority regarding the implementation of, and compliance with, any measures to manage fishing activity. Further information on progress is available on the Marine Management Organisation's webpages.

Licensable activities

  • Licensable activities such as oil and gas exploration and production do not take place within this MPA at present, but any future proposals would be managed in accordance with the clauses set out under Section 127 of The Marine & Coastal Access Act (2009). Under this clause, JNCC has a statutory responsibility to advise the regulator on developments that are capable of affecting (other than insignificantly) the protected features of the MPA and that may hinder the achievement of the site's conservation objectives. JNCC considers that the existing marine licensing process is sufficient to ensure the management of licensable activities taking place, or that could take place in the future, on the protected features of this MPA.
  • For further information, please see the MMO’s guidance on marine conservation zones and marine licensing.
  • Further information on JNCC’s role in the provision of advice for licensed activities in the UK offshore area is available on JNCC’s offshore industry advice webpages

Telecommunications cables

  • Three telecommunications cables currently cross through the MPA.
  • Cables are largely an unregulated activity in offshore waters depending upon the type of cable being laid (or maintained), where it is being laid between and whether the cable is part of a larger development (which may be regulated). Any cable not directly associated with an energy installation does not require a marine license beyond 12 nautical miles.
  • JNCC encourages early discussion from operators regarding any plans related to new or existing cables, and encourages the undertaking of non-statutory environmental impact assessments for new or existing cable projects to assess their effect on the protected features of the MPA.



3. Site condition monitoring

Site condition monitoring surveys are yet to take place within this MPA. Further information will be made available in the Monitoring section in due course. A summary of our existing knowledge base for this site is provided in the Evidence section.



4. Assessment of Progress towards conservation objectives

No long-term condition monitoring data are available to determine whether the MPA is moving towards or has reached its conservation objectives. The vulnerability assessment conducted for this site has set "recover" objectives for its protected habitat features, suggesting it is unlikely to be moving towards its conservation objectives. Directed site condition monitoring data are needed to improve our confidence in this assessment. Further information will be provided in the Assessment section as it becomes available.

Top

Monitoring

Last updated: October 2017

JNCC is currently leading on the development of a strategy for biodiversity monitoring across all UK waters, to include MPA monitoring. For MPAs, data and evidence collected from monitoring activities will aim to:

  • Enable assessment of condition of the features within sites;
  • Enable assessment of the degree to which management measures are effective in achieving the conservation objectives for the protected features;
  • Support the identification of priorities for future protection and/or management; and,
  • Enable Government to fulfil its national and international assessment and reporting commitments in relation to MPAs and help identify where further action may be required.

Information on monitoring of this MPA will be provided when it becomes available.

Top

Assessment

Last updated: October 2017

Assessments of the condition of designated features in offshore MPAs are required to report against our legal obligations. Ideally these assessments should be based on observed data, and then measured against targets for pre-defined indicators. However, for MPAs in offshore waters we do not always have the appropriate information to be able to do so. This is particularly true for seabed habitats, which are the main type of feature designated for protection in offshore MPAs.

To address these challenges, JNCC has been an active partner in the development of new approaches and tools for the assessment of habitats and species for a variety of national and international status reports.



Conservation Assessment Reports

Under Section 124 of the UK Marine & Coastal Access Act (2009), JNCC is required to report to Ministers every six years on the degree to which the conservation objectives of the protected features of Marine Conservation Zones (MCZs) have been achieved. Every six years from 2012, the Marine Act requires a report setting out how MCZs have performed against their conservation objectives, as well as the effectiveness of the network as a whole.

To date, three reports have been published, each setting out progress being made in implementing a Marine Protected Area network, covering the following areas:

Outputs of assessments that feed into Marine Act reporting also feed into reporting under other obligations.



UK State of the Seas Reports & UK Marine Strategy Part 1

Charting Progress 2 (CP2) published in 2010, is a comprehensive report on the state of the UK seas. It was published by the UK Marine Monitoring and Assessment Strategy (UKMMAS) community which has over 40 member organisations. The report was based on a robust, peer-reviewed evidence base and describes progress made since the publication of Charting Progress in 2005. It provides key findings from UK marine research and monitoring for use by policy makers and others, as we move towards the UK vision of clean, healthy, safe, productive and biologically diverse oceans and seas. The results from CP2 were incorporated into the UK Marine Strategy Part 1: UK Initial Assessment and Good Environmental Status published in 2012 under the UK Marine Strategy Regulations (2010). The UK Marine Strategy Part 1 (2012) also set out the UK’s definition for Good Environmental Status, which could be achieved by meeting a series of environmental targets. JNCC worked with other organisations in the UKMMAS community to develop a series of indicators that were used to assess progress against each of the targets and to report on progress made since 2012. The results of these assessments have been published in the UK Marine Strategy Part 1: UK Updated Assessment and Good Environmental Status in 2019. Detailed evidence used to make these assessments is available via the Marine Online Assessment Tool (MOAT). It also sets out proposals for updated high-level objectives, targets and operational targets to be used for 2018 to 2024, which build on those set in 2012.

It is worth noting the two other parts of the UK Marine Strategy: UK Marine Strategy Part Two: marine monitoring programmes, published in 2014 and UK Marine Strategy Part Three: programme of measures published in 2015. Updates to these will be made in 2020 and 2021 respectively.



OSPAR Quality Status Reports

Many of the assessments in the updated UK Marine Strategy Part 1 2019 were developed and produced in collaboration with other contracting Parties of the OSPAR Convention for the Protection of the North East Atlantic. In 2017 OSPAR Published its Intermediate Assessment (IA2017). The IA 2017 further develops OSPAR’s understanding of the marine environment of the North-East Atlantic and its current status. It demonstrates OSPAR’s progress towards realising its vision of a clean, healthy and biologically diverse North-East Atlantic, used sustainably. IA2017 follows on from OSPAR’s previous holistic assessment, the OSPAR Quality Status Report in 2010 (QSR2010) and in 2000 (QSR2000).



JNCC continues to develop and pilot tools for the assessment of marine habitats and species in offshore waters to improve the quality and transparency of our offshore MPA assessments, and contribute to the monitoring of marine biodiversity in UK waters. These tools cover methods for producing interim assessments of site features and their responses to pressures, as well as developing more robust indicators for determining condition of the features.
